LR03AAA

roduct use: the remote control LED lights candle lights electric toothbrushes electric eyelash curler bank password megaphones laser pointer wireless mouse keyboard calculator multimeter current voltage meter electric cars electric tools electric toys all kinds of instruments meters medical equipment massager PSP our fingerprint lock razors digital camera glucose meter smoke alarm microphone water heater electric mosquito swatter alarm clock and so on all kinds of electronic products.

Tel：+86-15295115836

Product Details

1. 放电性能/ Discharge Characteristic

(条件:测量温度: 20℃±2℃。收货后 30 天内测试。)
(condition: temperature: 20℃±2℃. Testing should be done within 30days upon the receipt of goods)

	放电条件/Discharge condition			最少平均放电时间/Minimum average Discharge time
(IEC 60086- 2:2007 ,MOD)	放电负载/ on-load resistance	每天放电时间 /Discharge time per day	终止电压/end Voltage(V)	新电 Battery	池	/fresh	室温存储 12 个月 /stored for 12 months under Room Temp
	20Ω	24h/d	0.9V	≥17.5 h			≥17 h
参考
	10Ω	24h/d	0.9V	≥7.5 h			≥7.0 h
标准
	3.9Ω	24h/d	0.9V	≥135 min			≥120 min
/refere
	5.1Ω	4min/h 8h/d	0.9V	≥230min			≥190min
nce
	600 mA	10s/min, 1h/d	0.9V	≥300 次 cycles			≥250 次 cycles
standar
d	75Ω	4h/d	0.9V	≥70h			≥68h

容量: ≥1200mAH (标准温度下 25mA 恒流放电至 0.8V)
Capacitance: ≥1200mAH (S.T. 25mA constant-current discharge to 0.8 V)

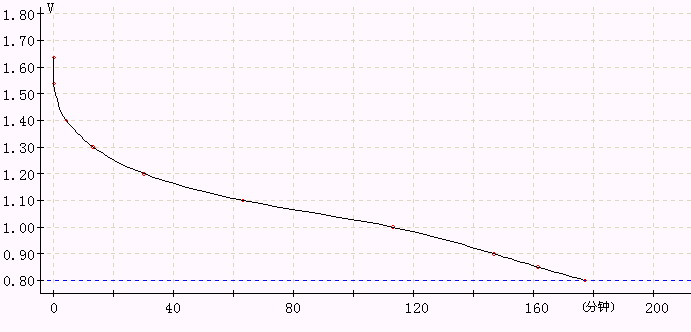

2. 放电曲线 Discharge Curves

a) 负载电阻 Load Resistance: 3.9Ω
