LR6AA 碱性5号
订购热线:13901508643
1. 放电性能/ Discharge Characteristic
(条件:测量温度: 20℃±2℃。收货后 30 天内测试。)(condition: temperature: 20℃±2℃. Testing should be done within 30days upon the receipt of goods)
放电条件/Discharge condition |
最少平均放电时间/Minimum average Discharge time |
||||
(IEC 60086 -2:200 7,MO D) 参考标准 /refere nce standa rd |
放电负载/ on-load resistance |
每天放电时间 /Discharge time per day |
终止电压 /end Voltage( V) |
新电池/fresh Battery |
室温存储 12 个月 /stored for 12 months under Room Temp |
3.9Ω | 1h/d | 0.8V | ≥430min | ≥400min | |
1000mA | 10s/min,1h/d | 0.9V | ≥350 次 cycles | ≥300 次 cycles | |
3.9Ω | 24h/d | 0.9V | ≥380 min | ≥360 次 min | |
10Ω | 24h/d | 0.9V | ≥19h | ≥18h | |
43Ω |
4h/d |
0.9V |
≥90h |
≥85h |
Capacitance: ≥ 2800mAH (S.T. 25mA constant-current discharge to 0.8 V)

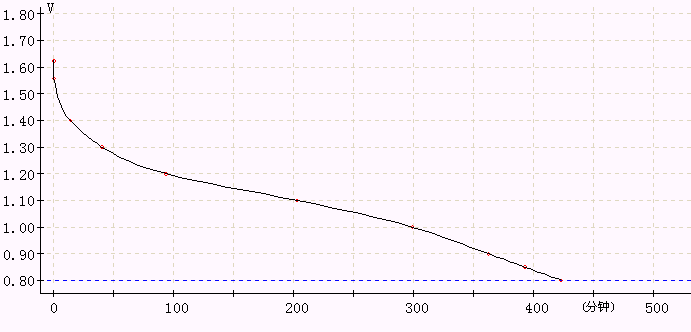

2.放电曲线/Discharge diagram
b)负载电阻 Load Resistance 3.9Ω 24h/d continuous推荐新品
...
